Human - INDY H4 Armature

CUZIN Range - 5 Armatures
CUZIN H1 CUZIN H2 CUZIN H3 CUZIN H4 CUZIN H5
INDY Range - 5 Armatures
INDY H1 INDY H2 INDY H3 INDY H4 INDY H5

INDY H4 - Key Features

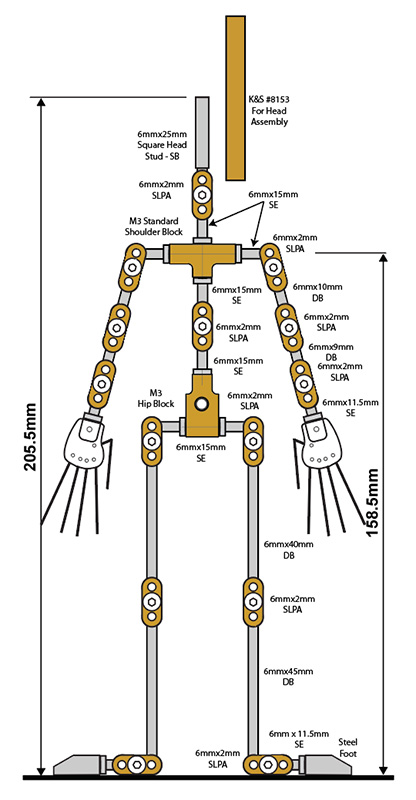

Overall Height 205.5mm Height to Shoulders 158.5mm

6mm Diameter Single Neck Assembly
M3 Brass Standard Shoulder Block
6mm Diameter Backbone Link Plate Assembly
M3 Brass Hip Block with M3 Rigging Point
6mm Diameter Brass Standard Link Plate Assemblies
Nickel Plated Steel Feet with Magnetic & M3 Tie Down
Nickel Plated Steel Limbs with Integrated Balls

Stainless Steel Link Plate Screws
Fully Assembled using Loctite 270
1 x 75mm Rigging Stud
2 x 50mm Standard Tie Down Assemblies
2 x 12mm Stainless Steel Tie Down Screws
2mm Allen Key

INDY H1 Armature
Drawing Number MA-072
Parts List Item PL-113
£96.00
