Human - CUZIN Y Armature

CUZIN Range - 7 Armatures
CUZIN
X
CUZIN
Y
CUZIN
H1
CUZIN
H2
CUZIN
H3
CUZIN
H4
CUZIN
H5
INDY Range - 5 Armatures
INDY
H1
INDY
H2
INDY
H3
INDY
H4
INDY
H5

Key Features

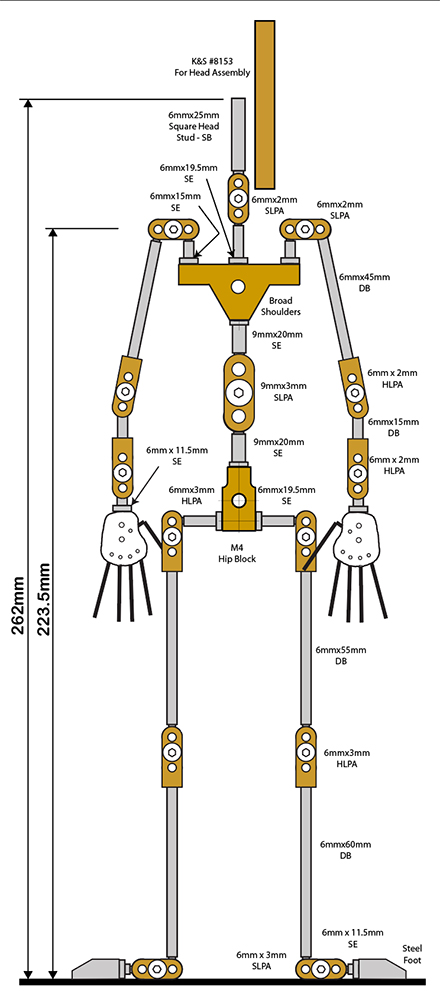

Overall Height 262.0mm Height to Shoulders 235.5mm

6mm Diameter Standard Neck Assembly
M4 Brass Broad Shoulder Block with M4 Rigging Point
9mm Diameter Backbone Link Plate Assembly

M4 Brass Hip Block with M4 Rigging Point
6mm Diameter Brass Hinge Link Plate Assemblies
:
Elbows; Hips; Knees
6mm Diameter Brass Standard Link Plate Assemblies:
Neck; Upper Shoulders; Ankles

Nickel Plated Steel Feet with Magnetic & M3 Tie Down
Nickel Plated Steel Limbs with Integrated Balls
Stainless Steel Link Plate Screws
Fully Assembled using Loctite 270
1 x 75mm Rigging Stud
2 x 50mm Standard Tie Down Assemblies
2 x 12mm Stainless Steel Tie Down Screws
2mm & 2.5mm Allen Keys

CUZIN Y Armature
Drawing Number MA-167
Parts List Item PL-207
£115.00
