Human - INDY H5 Armature

CUZIN Range - 7 Armatures
CUZIN
X
CUZIN
Y
CUZIN
H1
CUZIN
H2
CUZIN
H3
CUZIN
H4
CUZIN
H5
INDY Range - 5 Armatures
INDY
H1
INDY
H2
INDY
H3
INDY
H4
INDY
H5

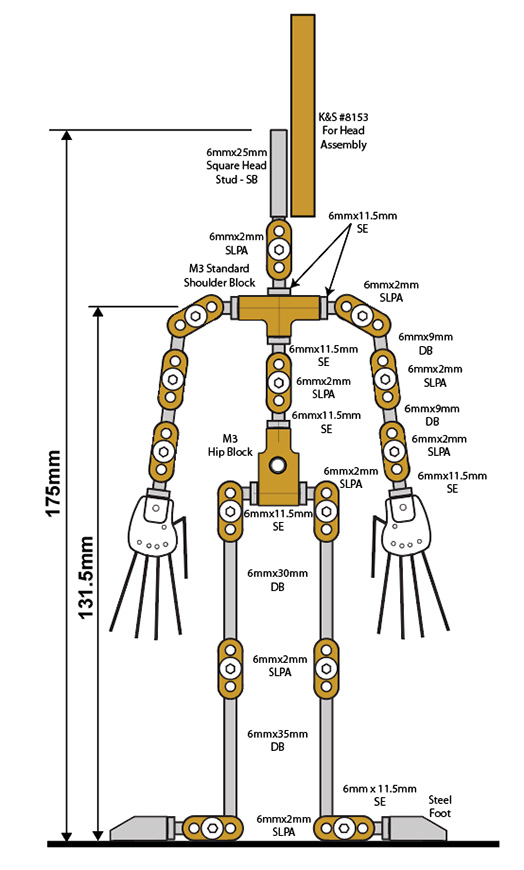

INDY H5 - Key Features
Overall Height 175.0mm Height to Shoulders 131.5mm

6mm Diameter Single Neck Assembly
M3 Brass Standard Shoulder Block
6mm Diameter Backbone Link Plate Assembly
M3 Brass Hip Block with M3 Rigging Point
6mm Diameter Brass Standard Link Plate Assemblies
Nickel Plated Steel Feet with Magnetic & M3 Tie Down
Nickel Plated Steel Limbs with Integrated Balls

Stainless Steel Link Plate Screws
Fully Assembled using Loctite 270
1 x 75mm Rigging Stud
2 x 50mm Standard Tie Down Assemblies
2 x 12mm Stainless Steel Tie Down Screws
2mm Allen Key

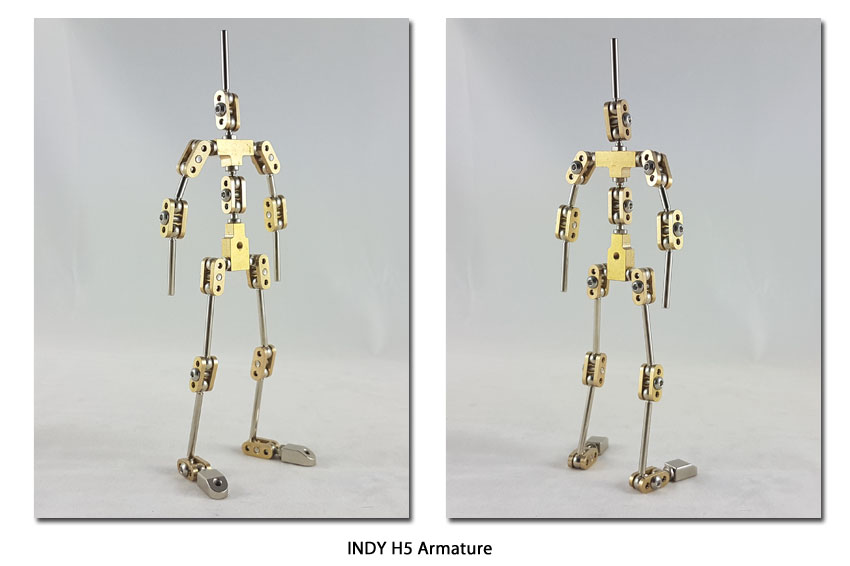

INDY H5 Armature
Drawing Number MA-073
Parts List Item PL-114
£94.00
