Human - CUZIN H3 Armature

CUZIN Range - 7 Human Armatures   INDY Range - 5 Human Armatures
CUZIN
X
CUZIN
Y
CUZIN
H1
CUZIN
H2
CUZIN
H3
CUZIN
H4
CUZIN
H5
INDY
H1
INDY
H2
INDY
H3
INDY
H4
INDY
H5

Key Features

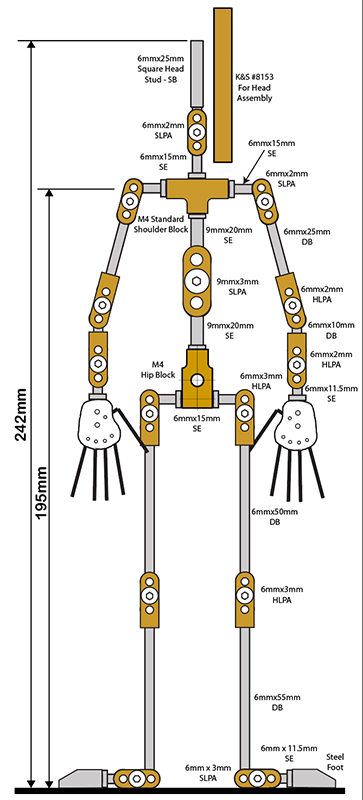

Overall Height 246.5mm Height to Shoulders 195.0mm

6mm Diameter Neck Link Plate Assembly
M4 Brass Standard Shoulder Block
9mm Diameter Backbone Link Plate Assembly
M4 Brass Hip Block with M4 Rigging Point
6mm Diameter Brass Hinge Link Plate Assemblies:
Elbows; Hips; Knees
6mm Diameter Brass Standard Link Plate Assemblies:
Neck; Shoulders; Ankles

Nickel Plated Steel Feet with Magnetic & M3 Tie Downs
Nickel Plated Steel Limbs with Integrated Balls
Square Head Stud compatible with K&S#8153 Square Tube
Stainless Steel Link Plate Screws
Fully Assembled using Loctite 270
1 x 75mm Rigging Stud
2 x 50mm Standard Tie Down Assemblies
2 x 12mm Stainless Steel Tie Down Screws
2mm & 2.5mm Allen Keys

Why not add a pair of Hands to your Armature for ONLY £15.00
CUZIN H3 Hand Set:
3D printed Hand, five twisted aluminium wire fingers, cut to length as required, 2mm rigging hole, wrist and link plate assembly with a double ball forearm.

CUZIN H3 Armature
Drawing Number MA-163
Parts List Item PL-203
£135.00

CUZIN H3 Armature with Hands
Drawing Number MA-163
Parts List Item PL-203/H
£150.00

Malvern Armatures
3D printed Hands are available for all the CUZIN Armatures - More info
This Armature has been designed to be used with the M4 Large Rig Assembly
