Human - INDY H1 Armature

CUZIN Range - 7 Human Armatures   INDY Range - 5 Human Armatures
CUZIN
X
CUZIN
Y
CUZIN
H1
CUZIN
H2
CUZIN
H3
CUZIN
H4
CUZIN
H5
INDY
H1
INDY
H2
INDY
H3
INDY
H4
INDY
H5

Key Features

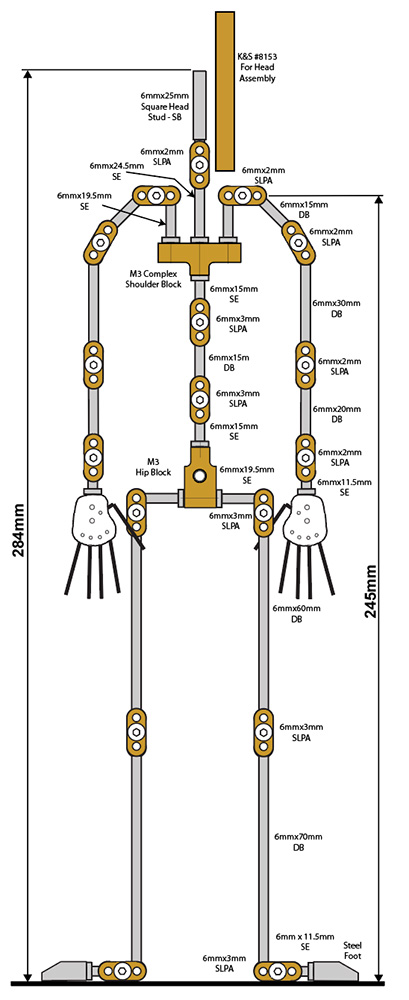

Overall Height 284.0mm Height to Shoulders 245.0mm

6mm Diameter Single Neck Assembly
M3 Brass Complex Shoulder Block
6mm Diameter Backbone Double Link Plate Assembly
M3 Brass Hip Block with M4 Rigging Point
6mm Diameter Brass Standard Link Plate Assemblies
Nickel Plated Steel Feet with Magnetic & M3 Tie Down
Nickel Plated Steel Limbs with Integrated Balls

Square Head Stud compatible with K&S#8153 Square Tube Stainless Steel Link Plate Screws
Fully Assembled using Loctite 270
1 x 75mm Rigging Stud
2 x 50mm Standard Tie Down Assemblies
2 x 12mm Stainless Steel Tie Down Screws
2mm Allen Key

Why not add a pair of Hands to your Armature for ONLY £15.00
INDY H1 Hand Set (Parts List Item 177): Standard 3D printed hand palm with five twisted aluminium wire fingers (which can be cut to length as required) glued in place with a 2mm rigging hole. Wrist assembly comprises 6mmx11.5mm Stud End Loctited in place, with a 6mmx2mm Standard Link Plate Assembly and a 6mmx20mm Double Ball End Forearm.

INDY H1 Armature
Drawing Number MA-069
Parts List Item PL-110
£142.00

INDY H1 Armature
Drawing Number MA-069
Parts List Item PL-110/H
£157.00

Malvern Armatures
Hands available for all the INDY Armatures - More info
This Armature has been designed to be used with the M4 Large Rig Assembly
SHIPPING - We ship all over the world
At "Check Out" £15.00 P+P for the UK Only is added.
For "Rest of the World" shipping please add £10.00 using this button:
