Build Your Own - Component Assembly Dimensions

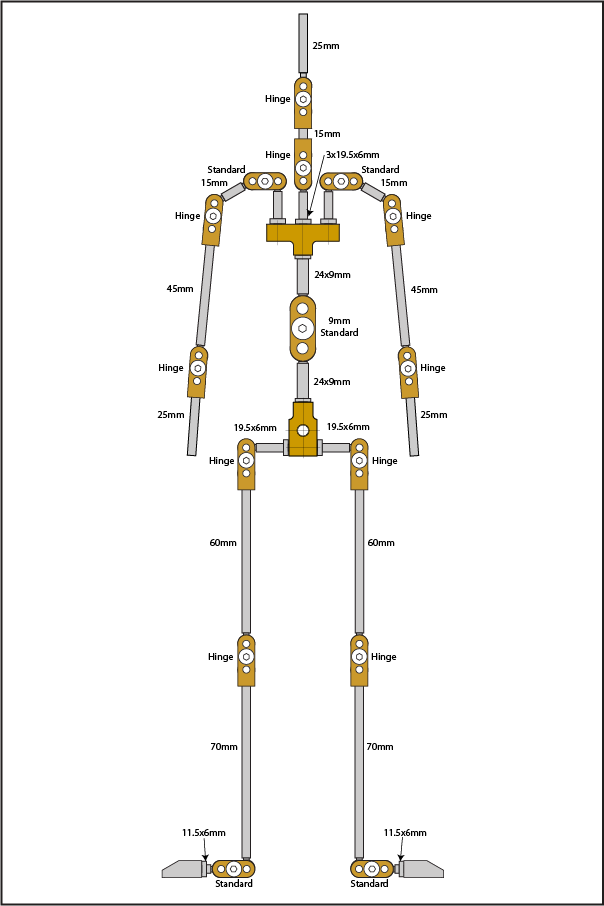

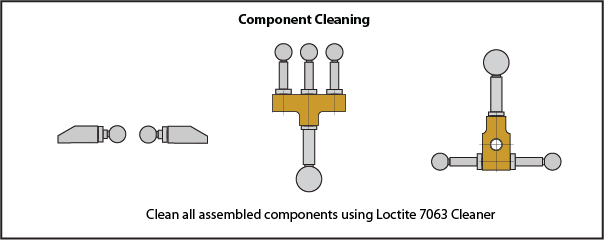

To help you design and build your own armature these drawings show the dimensions of our major components and asemblies. The 6mm Brass Hip and Shoulder Blocks are tapped with an M3 thread and will take any combination of the 6mm Stud Ends. The 9mm Hip and Shoulder Blocks have M3 and M4 threads.

If you can't find the time to design your own armature we provide a full armature design & manufacturing service providing bespoke customised solutions to meet your specific requirements. So if you have a design in mind please send us a full size "Turn Around" drawing and we will endeavour to design and cost an armature to meet your specific requirements.

6mm Standard & Hinge Link Plate Assemblies

6mm x 25mm Single Ball Ends (Round + Square)

Malvern Armatures

Standard/Hinge Brass Link Plate
6mm Diameter Ball with 3mm Diameter Rods
Requires 2mm Allen Key

Malvern Armatures
Round - Standard/Hinge Brass Link Plate
6mm Diameter Ball with 3mm Diameter Rods
Requires 2mm Allen Key

Malvern Armatures

Standard Brass Link Plate
6mm Diameter Ball with 9mm Centres
3mm Diameter Rods
(Ideal for building equispaced Backbone Assemblies)
Requires 2mm Allen Key

Malvern Armatures

Square - Standard/Hinge Brass Link Plate
6mm Diameter Ball with Square Head Stud
Comaptible with K&S#8153
Requires 2mm Allen Key


6mm Double Ball Ends

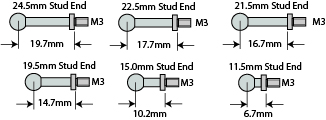

6mm Stud Ends

Dimension between ball centres,
6mm Diameter Ball, 3mm Diameter Rods

6mm Diameter Ball, 3mm Diameter Rods, 5.5mm A/F for spanner

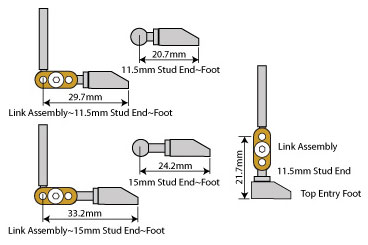

6mm Steel Foot Assemblies

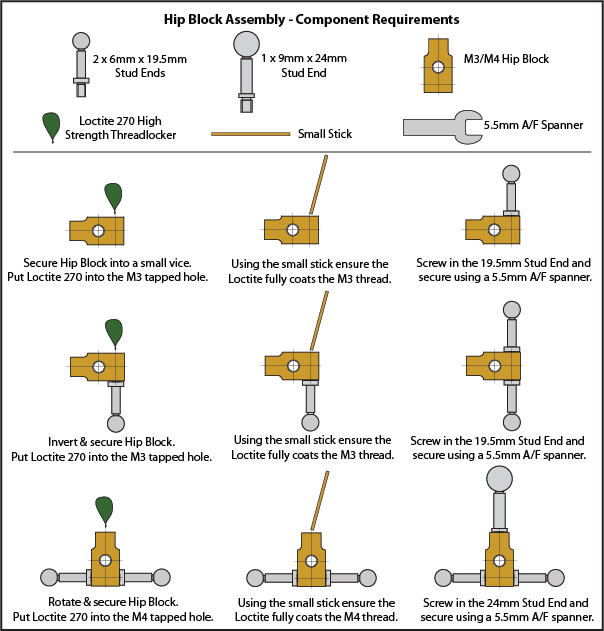

6mm Brass Hip Block Assembly

Malvern Armatures


Steel Foot with M3 Tie Down

Malvern Armatures

M4 Central Rigging Point
Use any combination of 6mm Stud Ends

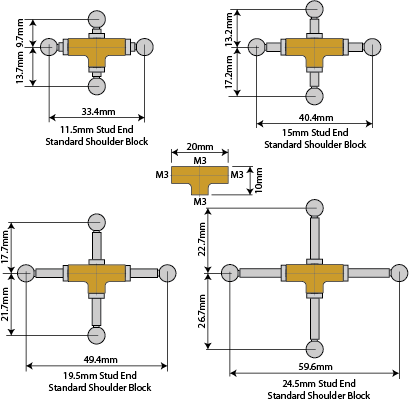

6mm Brass Standard Shoulder Block Assembly

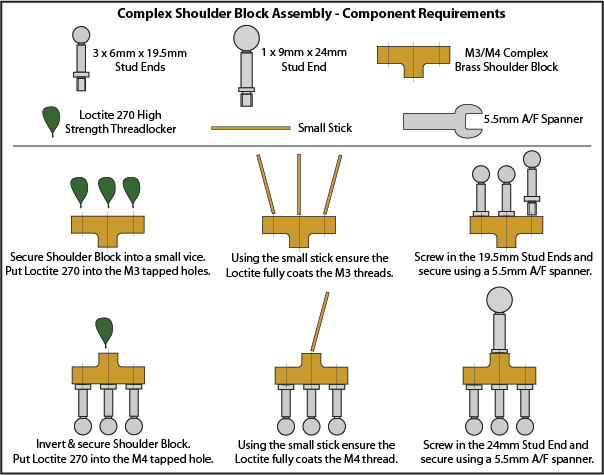

6mm Brass Complex Shoulder Block Assembly

Malvern Armatures

Use any combination of 6mm Stud Ends

Malvern Armatures

Use any combination of 6mm Stud Ends


9mm Link Plate Assemblies



Malvern Armatures

Brass Link Plate, 9mm Diameter Ball with 4mm Diameter Rods
15mm between Centres
Requires 2.5mm Allen Key




Malvern Armatures

Standard 9mm Brass Link Plate
9mm Diameter Ball with 10mm/15mm Centres
4mm Diameter Rods
(Ideal for building equispaced Backbone Assemblies)
Requires 2.5mm Allen Key

Malvern Armatures

Standard 9mm Brass Link Plate
9mm Diameter Ball with 15mm Centres
4mm Diameter Rods
(Ideal for building equispaced Backbone Assemblies)
Requires 2.5mm Allen Key

9mm Stud Ends

Malvern Armatures

9mm Diameter Ball, 4mm Diameter Rods, 5.5mm A/F for spanner

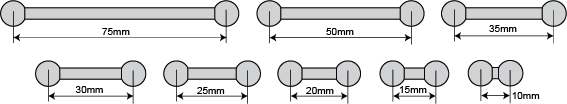

9mm Double Ball Ends



Malvern Armatures

Dimension between ball centres, 9mm Diameter Ball, 4mm Diameter Rods

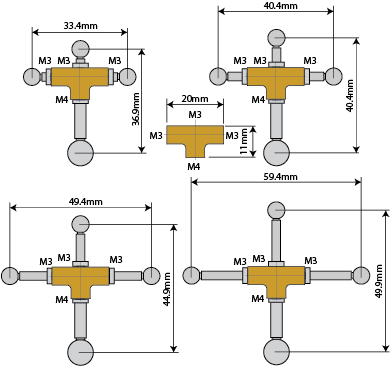

20mm x 9mm Brass Standard Shoulder Block Assembly

24mm x 9mm Brass Standard Shoulder Block Assembly

Malvern Armatures

Use any combination of 6mm Stud Ends

Malvern Armatures

Use any combination of 6mm Stud Ends


20mm x 9mm Brass Complex Shoulder Block Assembly

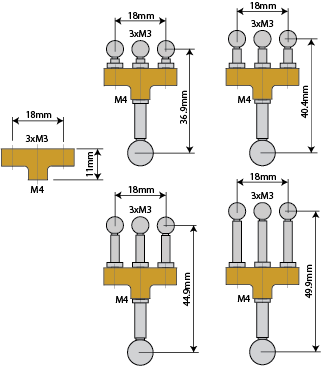

24mm x 9mm Brass Complex Shoulder Block Assembly


Malvern Armatures

Use any combination of 6mm Stud Ends

Malvern Armatures

Use any combination of 6mm Stud Ends

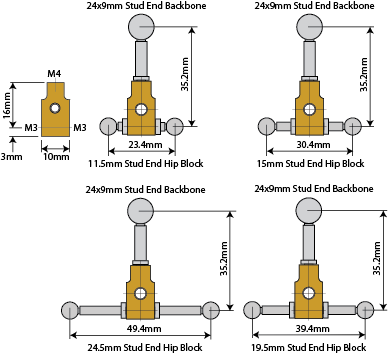

20mm x 9mm Brass Hip Block Assembly

24mm x 9mm Brass Hip Block Assembly

Malvern Armatures

M4 Central Rigging Point
Backbone - 9mm Diameter Ball, 4mm Diameter Rods,
5.5 A/F for spanner
Hips - 6mm Diameter Ball, 3mm Diameter Rods, 5.5mm A/F for spanner

Malvern Armatures

M4 Central Rigging Point
Backbone - 9mm Diameter Ball, 4mm Diameter Rods,
5.5 A/F for spanner
Hips - 6mm Diameter Ball, 3mm Diameter Rods, 5.5mm A/F for spanner

What components do you need for an Armature?
A detailed breakdown of the components required to build a CUZIN H1 Human Armature.
