Bespoke Armatures

If you can't find the armature that fits your character we provide a full armature design & manufacturing service providing bespoke customised solutions to meet your specific requirements. So if you have a design in mind please send us a full size "Turn Around" drawing and we will endeavour to design and cost an armature to meet your specific requirements.

If you are thinking of building your own Armature please take a look at the Component Assembly Page giving full dimensions of the major assemblies reuqired to build your armature.

Bespoke Penguin Armature

Malvern Armatures - Quality in Motion - Stop Motion Animation Armatures

Penguin Armature - Key Features

Fully Assembled using Loctite 270
Complex Brass Shoulder Design
Brass Hip Block
Hip Block - M3 Rigging Point
M3 Tie Down Point on each Foot
Standard 6mm Link Plate Assemblies
Replacement Aluminium Wire Flippers
Magnetic Tie Down
75mm M3 Rigging Studs

2 x 50mm Standard Tie Down Assemblies
2 x M3x12mm Stainless Steel Tie Down Screws
2mm Al
len Key

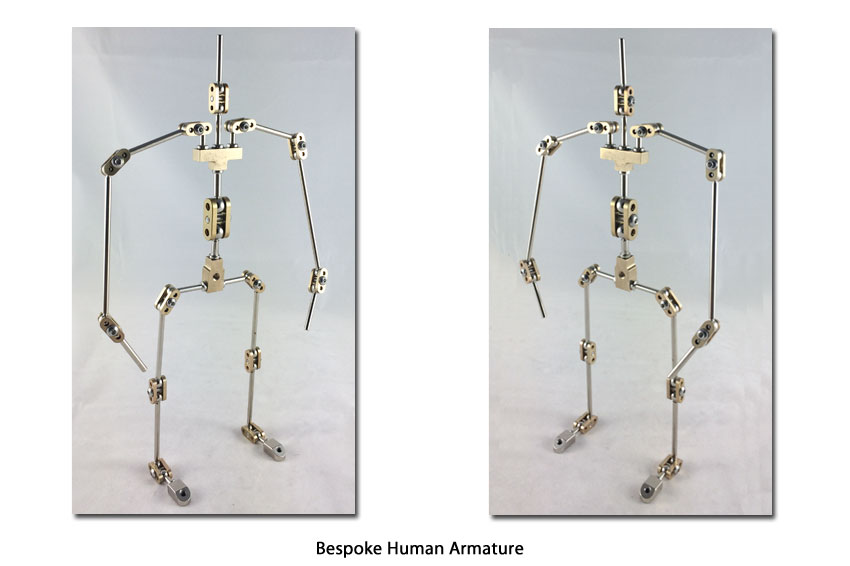

Bespoke Human Armatures

Malvern Armatures - Quality in Motion - Stop Motion Animation Armatures

Key Features

Fully Assembled using Loctite 270
Complex Brass Shoulder Design
9mm Backbone Assembly
Brass Hip Block
Hip Block - M3 Rigging Point
M3 Tie Down Point on each Foot
Standard 6mm Link Plate Assemblies
Magnetic Tie Down
75mm M4 Rigging Stud

2 x 50mm Standard Tie Down Assemblies
2 x M3x12mm Stainless Steel Tie Down Screws
2mm Al
len Key

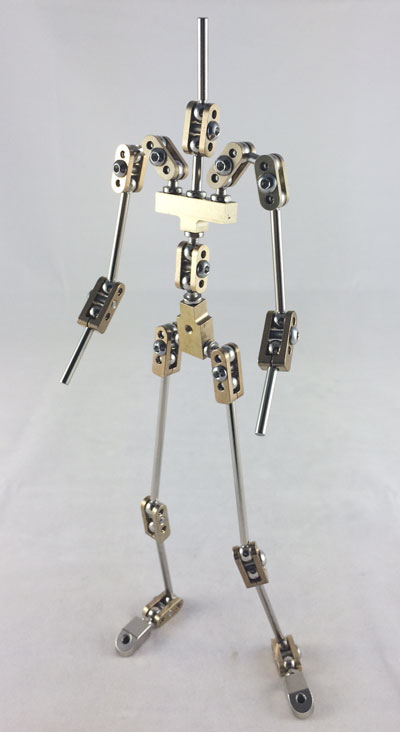

Malvern Armatures - Bespoke Armatures Malvern Armatures - Bespoke Armatures
Key Features
Overall Height 223.0mm
Fully Assembled using Loctite 270
Complex Brass Shoulder Design
Brass Hip Block
Hip Block - M3 Rigging Point
M3 Tie Down Point on each Foot
Hinge & Standard 6mm Link Plate Assemblies
Magnetic Tie Down
75mm M3 Rigging Stud
2 x 50mm Standard Tie Down Assemblies
2 x M3x12mm Stainless Steel Tie Down Screws
2mm Allen Key

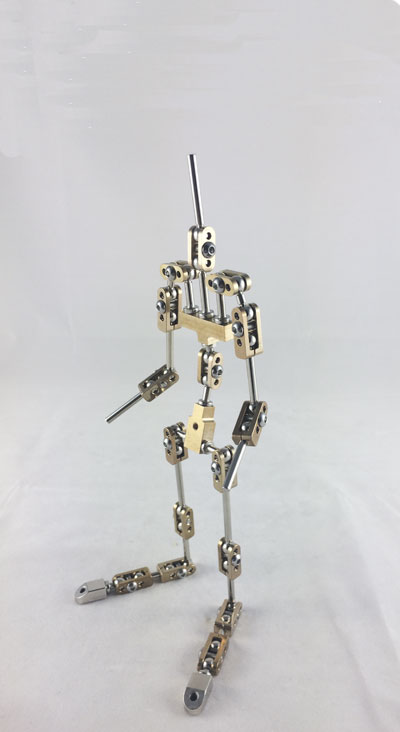

Key Features
Overall Height 187.0mm
Fully Assembled using Loctite 270
Complex Brass Shoulder Design
Brass Hip Block
Hip Block - M3 Rigging Point
M3 Tie Down Point on each Foot
Hinge & Standard 6mm Link Plate Assemblies
Magnetic Tie Down
75mm M3 Rigging Stud
2 x 50mm Standard Tie Down Assemblies
2 x M3x12mm Stainless Steel Tie Down Screws
2mm Allen Key

Malvern Armatures - Bespoke Armatures Malvern Armatures - Bespoke Armatures

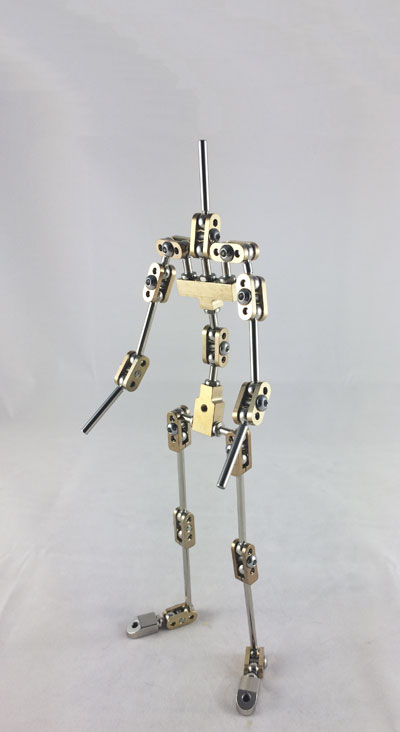

Key Features
Overall Height 206.0mm
Fully Assembled using Loctite 270
Complex Brass Shoulder Design
Brass Hip Block
Hip Block - M3 Rigging Point
M3 Tie Down Point on each Foot
Standard 6mm Link Plate Assemblies
Magnetic Tie Down
75mm M3 Rigging Stud
2 x 50mm Standard Tie Down Assemblies
2 x M3x12mm Stainless Steel Tie Down Screws
2mm Allen Key

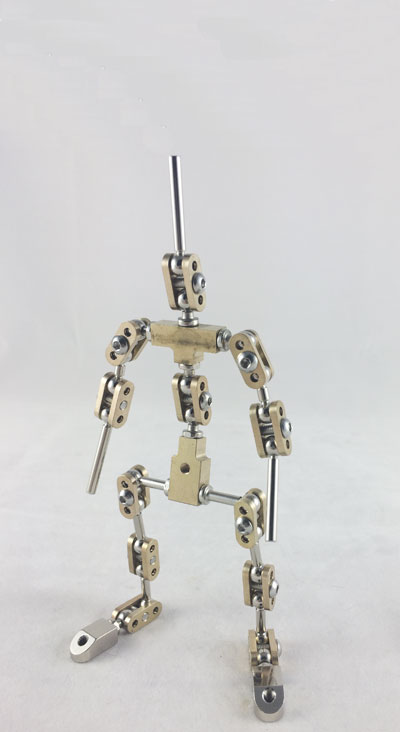

Key Features
Overall Height 140.0mm
Fully Assembled using Loctite 270
Standard Brass Shoulder Design
Brass Hip Block
Hip Block - M3 Rigging Point
M3 Tie Down Point on each Foot
Standard 6mm Link Plate Assemblies
Magnetic Tie Down
75mm M3 Rigging Stud
2 x 50mm Standard Tie Down Assemblies
2 x M3x12mm Stainless Steel Tie Down Screws
2mm Allen Key

Bespoke Elephant Armature

Malvern Armatures - Quality in Motion - Stop Motion Animation Armatures

Elephant Armature - Key Features

Fully Assembled using Loctite 270
Complex Aluminium Hip, Shoulder & Skull Blocks
6mm Steel Feet with M3 Tie Downs

Central (Rib) -
M4 Rigging Point
Standard 6mm & 9mm Brass Link Plate Assemblies
Magnetic Tie Down
2 x 75mm M4 Rigging Studs
1 x 200mm Rigging Stud

4 x 50mm Standard Tie Down Assemblies
4 x M3x12mm Stainless Steel Tie Down Screws
2mm & 2.5mm Al
len Keys

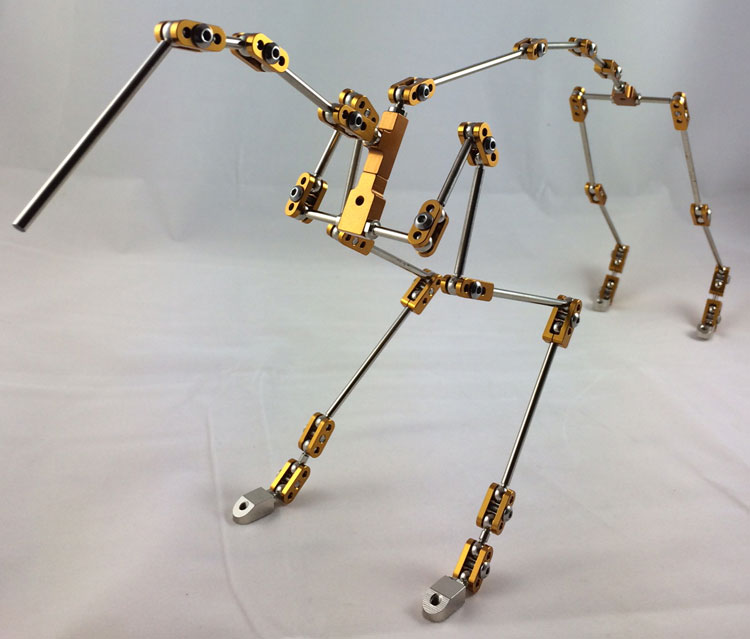

Bespoke Tiger Armature

Malvern Armatures - Quality in Motion - Stop Motion Animation Armatures

Tiger Armature - Key Features

Fully Assembled using Loctite 270
Complex Brass Shoulder Design
Brass Hip Block
Triple Jointed Backbone Standard Brass Link Plate Assemblies
Hip & Chest Block - M3 Rigging Points
M3 Tie Down Point on each Foot
Standard & Hinge 6mm Link Plate Assemblies
Magnetic Tie Down
75mm M3 Rigging Studs
1 x 200mm Rigging Stud

4 x 50mm Standard Tie Down Assemblies
4 x M3x12mm Stainless Steel Tie Down Screws
2mm Al
len Key
