Human - CUZIN H5 Armature

CUZIN Range - 5 Armatures
CUZIN H1 CUZIN H2 CUZIN H3 CUZIN H4 CUZIN H5
INDY Range - 5 Armatures
INDY H1 INDY H2 INDY H3 INDY H4 INDY H5

Key Features

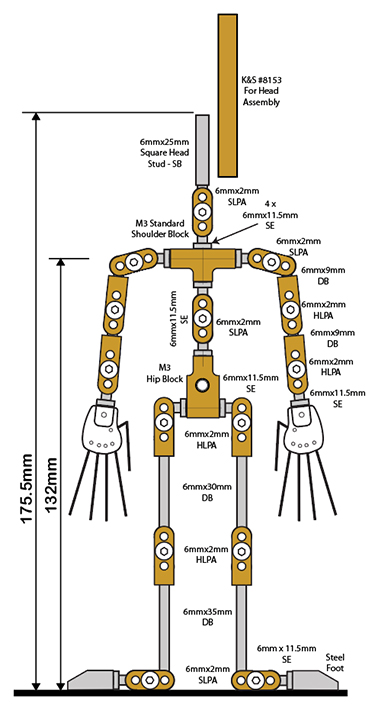

Overall Height 175.5mm Height to Shoulders 132.0mm

6mm Diameter Neck Link Plate Assembly
M3 Brass Standard Shoulder Block
6mm Diameter Backbone Link Plate Assembly

M3 Brass Hip Block with M3 Rigging Point
6mm Diameter Brass Hinge Link Plate Assemblies
:
Elbows; Hips; Knees
6mm Diameter Brass Standard Link Plate Assemblies:
Neck; Shoulders; Backbone; Ankles

Nickel Plated Steel Feet with Magnetic & M3 Tie Downs
Nickel Plated Steel Limbs with Integrated Balls
Stainless Steel Link Plate Screws
Fully Assembled using Loctite 270
1 x 75mm Rigging Stud
2 x 50mm Standard Tie Down Assemblies
2 x 12mm Stainless Steel Tie Down Screws
2mm Allen Key

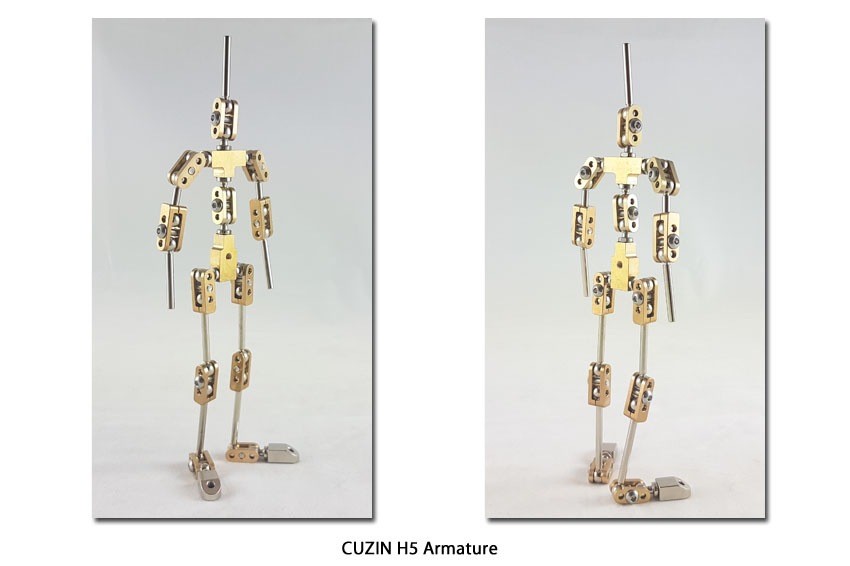

CUZIN H5 Armature
Drawing Number MA-165
Parts List Item PL-205
£101.00
