| Shoulder and Hip Blocks |
M3 Complex Brass Shoulder Block
Drg No. MA-076
Parts List Item 1
Price -
£5.00 each |
Machined Brass with 3xM3 holes for shoulders, neck & backbone.
Dimensions: 10mm deep x 26mm long. |
|
|
|
M3 Standard Brass Shoulder Block
Drg No. MA-075
Parts List Item 2
Price -
£5.00 each |
Machined Brass with 3xM3 holes for shoulders, neck & backbone.
Dimensions: 10mm deep x 20mm long. |
|
|
|
M3 Brass Hip Block
Drg No. MA-077
Parts List Item 3
Price -
£5.00 each |
Machined Brass with 2xM3 holes for hips, backbone & M4 Rigging Point
Dimensions: 6mm x 10mm x 19mm. |
|
|
|
M4/M3 Complex Brass Shoulder Block
Drg No. MA-126
Parts List Item 4
Price -
£5.50 each |
Machined Brass with 1xM4 hole for backbone & 3xM3 holes for shoulders & neck.
Dimensions: 11mm deep x 26mm long. |
|
|
|
M4/M3 Standard Brass Shoulder Block
Drg No. MA-127
Parts List Item 5
Price -
£5.50 each |
Machined Brass with 1xM4 hole for backbone & 3xM3 holes for shoulders & neck.
Dimensions: 11mm deep x 20mm long. |
|
|
|
M4/M3 Brass Hip Block
Drg No. MA-125
Parts List Item 6
Price -
£5.50 each |
Machined Brass with 2xM4 holes for backbone & rigging & 1xM3 through hole for hips.
Dimensions: 7mm x 10mm x 19mm. |
|
|
|
| |
M4/M3 Broad Brass Shoulder Block
Drg No. MA-168
Parts List Item 76
Price -
£5.90 each |
Machined Brass with 2xM4 holes for rigging & backbone & 3xM3 holes for shoulders & neck.
Dimensions: 18.5mm deep x 36mm wide. |
|
|
|
|
| 6mm Brass Standard Link Plate Assemblies |
6mm Brass Link Plate Assembly
2mm Thick Plates / M3 x 8mm Screw
Drg No. MA-002
Parts List Item 15
Price -
£3.80 each |
6mmx2mm Brass Link Plate Assembly with M3x8mm Stainless Steel Screw. General use on an Armature.
Dimensions: Link Plate 15mm x 6mm x 2mm |
|
|
|
6mm Brass Link Plate Assembly
3mm Thick Plates / M3 x 10mm Screw
Drg No. MA-294
Parts List Item 93
Price -
£4.10 each |
6mmx3mm Brass Link Plate Assembly with M3x10mm Stainless Steel Screw. For use on Ankle Joints for a stronger Armature.
Dimensions: Link Plate 15mm x 6mm x 3mm |
|
|
|
|
| 6mm Brass Hinge Link Plate Assemblies |
6mm Brass Hinge Link Plate Assembly2mm Thick Plates / M3 x 8mm Screw
Drg No. MA-109
Parts List Item 22
Price -
£4.50 each |
6mmx2mm Brass Hinge Link Plate Assembly with M3 Stainless Steel Screw. General use on an Armature.
Dimensions: Link Plate 18mm x 6mm x 2mm |
|
|
|
6mm Brass Hinge Link Plate Assembly
3mm Thick Plates
/ M3x10mm Screw
Drg No. MA-293
Parts List Item 92
Price -
£5.20 each |
6mmx3mm Brass Hinge Link Plate Assembly with M3 Stainless Steel Screw. For use on Hips and Knees for a stronger Armature.
Dimensions: Link Plate 18mm x 6mm x 3mm |
|
|
|
|
| 9mm Brass Standard Link Plate Assembly |
Brass Link Plate Assembly
9mm Ball x 15mm centres
Drg No. MA-270
Parts List Item 81
Price -
£5.50 each
|
9mm Brass Link Plate Assembly x 15mm centres with M4 Stainless Steel Screw.
Dimensions: Link Plate 24mm x 9mm |
|
|
|
|
|
| 6mm Stud Ends & 25mm Single Ball |
Stud End - 11.5mm x 6mm
Drg No. MA-041
Parts List Item 28
Price -
£2.20 each
|
Nickel plated steel, ball centre to thread end 11.5mm, M3 thread, 6mm ball, 5.5mm flats to allow tightening.
|
|
|
|
Stud End - 15.0mm x 6mm
Drg No. MA-043
Parts List Item 29
Price -
£2.20 each |
Nickel plated steel, ball centre to thread end 15.0mm, M3 thread, 6mm ball, 5.5mm flats to allow tightening.
|
|
|
|
Stud End - 19.5mm x 6mm
Drg No. MA-044
Parts List Item 30
Price -
£2.40 each |
Nickel plated steel, ball centre to thread end 19.5mm, M3 thread, 6mm ball, 5.5mm flats to allow tightening.
|
|
|
|
Stud End - 21.5mm x 6mm
Drg No. MA-199
Parts List Item 75
Price -
£2.50 each |
Nickel plated steel, ball centre to thread end 21.5mm, M3 thread, 6mm ball, 5.5mm flats to allow tightening.
|
|
|
|
Stud End - 22.5mm x 6mm
Drg No. MA-249
Parts List Item 80
Price -
£2.50 each |
Nickel plated steel, ball centre to thread end 22.5mm, M3 thread, 6mm ball, 5.5mm flats to allow tightening.
|
|
|
|
Stud End - 24.5mm x 6mm
Drg No. MA-050
Parts List Item 31
Price -
£2.60 each |
Nickel plated steel, ball centre to thread end 24.5mm, M3 thread, 6mm ball, 5.5mm flats to allow tightening.
|
|
|
|
Single Ball - 25mm x 6mm
Drg No. MA-057
Parts List Item 40
Price -
£2.00 each |
Nickel plated steel, ball centre to end 25mm, 6mm ball.
|
|
|
|
Square Head Stud - 25mm x 6mm
Drg No. MA-279
Parts List Item 91
Price -
£3.50 each |
Nickel plated steel, ball centre to end 25mm, 6mm ball, square stud compatible with K&S Square Brass Tube 8153
|
|
|
|
|
| 6mm Double Ball Ends |
Double Ball End - 9mm x 6mm
Drg No. MA-271
Parts List Item 87
Price -
£2.50 each |
Nickel plated steel, ball centre to ball centre 9mm, 6mm diameter ball.
|
|
|
|
Double Ball End - 10mm x 6mm
Drg No. MA-055
Parts List Item 32
Price -
£2.50 each |
Nickel plated steel, ball centre to ball centre 10mm, 6mm diameter ball.
|
|
|
|
Double Ball End - 15mm x 6mm
Drg No. MA-042
Parts List Item 33
Price -
£2.50 each |
Nickel plated steel, ball centre to ball centre 15mm, 6mm diameter ball.
|
|
|
|
Double Ball End - 20mm x 6mm
Drg No. MA-140
Parts List Item 71
Price -
£2.50 each |
Nickel plated steel, ball centre to ball centre 20mm, 6mm diameter ball.
|
|
|
|
Double Ball End - 25mm x 6mm
Drg No. MA-141
Parts List Item 72
Price -
£2.50 each |
Nickel plated steel, ball centre to ball centre 25mm, 6mm diameter ball.
|
|
|
|
Double Ball End - 30mm x 6mm
Drg No. MA-046
Parts List Item 34
Price -
£2.60 each |
Nickel plated steel, ball centre to ball centre 30mm, 6mm diameter ball.
|
|
|
|
Double Ball End - 35mm x 6mm
Drg No. MA-048
Parts List Item 35
Price -
£2.60 each |
Nickel plated steel, ball centre to ball centre 35mm, 6mm diameter ball.
|
|
|
|
Double Ball End - 40mm x 6mm
Drg No. MA-047
Parts List Item 36
Price -
£2.80 each |
Nickel plated steel, ball centre to ball centre 40mm, 6mm diameter ball.
|
|
|
|
Double Ball End - 45mm x 6mm
Drg No. MA-056
Parts List Item 37
Price -
£2.80 each |
Nickel plated steel, ball centre to ball centre 45mm, 6mm diameter ball.
|
|
|
|
Double Ball End - 50mm x 6mm
Drg No. MA-196
Parts List Item 73
Price -
£3.00 each |
Nickel plated steel, ball centre to ball centre 50mm, 6mm diameter ball.
|
|
|
|
Double Ball End - 55mm x 6mm
Drg No. MA-197
Parts List Item 74
Price -
£3.00 each |
Nickel plated steel, ball centre to ball centre 55mm, 6mm diameter ball.
|
|
|
|
Double Ball End - 60mm x 6mm
Drg No. MA-052
Parts List Item 38
Price -
£3.50 each |
Nickel plated steel, ball centre to ball centre 60mm, 6mm diameter ball.
|
|
|
|
Double Ball End - 70mm x 6mm
Drg No. MA-053
Parts List Item 39
Price -
£3.50 each |
Nickel plated steel, ball centre to ball centre 70mm, 6mm diameter ball.
|
|
|
|
|
|
| 9mm Stud Ends |
Stud End - 20mm x 9mm
Drg No. MA-128
Parts List Item 44
Price -
£3.00 each |
Nickel plated steel, ball centre to thread end 20mm, M4 thread, 9mm ball, 5.5mm flats to allow tightening.
|
|
|
|
Stud End - 24mm x 9mm
Drg No. MA-121
Parts List Item 45
Price -
£3.00 each |
Nickel plated steel, ball centre to thread end 24mm, M4 thread, 9mm ball, 5.5mm flats to allow tightening.
|
|
|
|
9mm/M4 Extension
Drg No. MA-169
Parts List Item 77
Price -
£2.90 each |
Nickel plated steel, 9mm ball with 25mm M4 thread. Note - M4 thread can be cut to size to meet specific requirements.
|
|
|
|
| 9mm Double Ball Ends |
10mm x 9mm Double Ball End
Drg No. MA-264
Parts List Item 82
Price -
£2.70 each |
Fully machined, nickel plated steel, 4mm diameter rod, ball centre to ball centre 35mm, 9mm diameter ball.
|
|
|
|
15mm x 9mm Double Ball End
Drg No. MA-265
Parts List Item 83
Price -
£2.75 each |
Fully machined, nickel plated steel, 4mm diameter rod, ball centre to ball centre 35mm, 9mm diameter ball.
|
|
|
|
20mm x 9mm Double Ball End
Drg No. MA-266
Parts List Item 84
Price -
£2.80 each |
Fully machined, nickel plated steel, 4mm diameter rod, ball centre to ball centre 35mm, 9mm diameter ball.
|
|
|
|
25mm x 9mm Double Ball End
Drg No. MA-267
Parts List Item 85
Price -
£2.90 each |
Fully machined, nickel plated steel, 4mm diameter rod, ball centre to ball centre 35mm, 9mm diameter ball.
|
|
|
|
30mm x 9mm Double Ball End
Drg No. MA-268
Parts List Item 86
Price -
£3.00 each |
Fully machined, nickel plated steel, 4mm diameter rod, ball centre to ball centre 35mm, 9mm diameter ball.
|
|
|
|
35mm x 9mm Double Ball End
Drg No. MA-122
Parts List Item 41
Price -
£3.20 each |
Fully machined, nickel plated steel, 4mm diameter rod, ball centre to ball centre 35mm, 9mm diameter ball.
|
|
|
|
50mm x 9mm Double Ball End
Drg No. MA-123
Parts List Item 42
Price -
£3.30 each |
Fully machined, nickel plated steel, 4mm diameter rod, ball centre to ball centre 50mm, 9mm diameter ball. |
|
|
|
75mm x 9mm Double Ball End
Drg No. MA-124
Parts List Item 43
Price -
£3.50 each |
Fully machined, nickel plated steel, 4mm diameter rod, ball centre to ball centre 75mm, 9mm diameter ball. |
|
|
|
|
| General Components |
M3 Steel Feet (Pair)
Drg No. MA-003
Parts List Item 10
Price -
£7.80 Pair |
Nickel Plated Machined Steel Foot with an M3 Tie Down point (shown) & M3 rear entry. Used on most Armatures. Price is for one PAIR.
Dimensions: 14mm x 8mm x 6mm |
|
|
|
M3 Steel Feet (Pair)
Drg No. MA-239
Parts List Item 79
Price -
£7.80 Pair |
Nickel Plated Machined Steel Foot with an M3 Tie Down point & M3 Top Entry. Used on Quadruped Armatures. Price is for one PAIR.
Dimensions: 14mm x 8mm x 6mm |
|
|
|
|
K&S Brass Tube #8151
Drg No. N/A
Parts List Item 78
Price -
£4.00 each |
#8151 K&S Brass Square Tube x 145mm long used in general construction situations. Designed to slide inside PL Item 62 - #8152 |
|
|
|
K&S Brass Tube #8152
OUT OF STOCK
Parts List Item 62
Price -
£4.00 each |
#8152 K&S Brass Square Tube x 145mm long used in general construction situations. Designed to slide inside PL Item 63 - #8153 |
|
|
|
K&S Brass Tube #8153
Drg No. N/A
Parts List Item 63
Price -
£4.00 each |
#8153 K&S Brass Square Tube x 145mm long used in general construction situations. Designed to slide outside PL Item 62 - #8152 |
|
|
|
| (K&S Square Tube Price Increase - Sorry K&S Metals have put their prices up) |
Tin with Hinged Lid - Plain Silver
181x76x22mm
Parts List Item 89
Price -
£2.50 each |
A plain siver tin with a hinged lid. 181x76x22mm. Ideal for keeping Armature Allen Keys, Rigging Assemblies, Tie Down Assemblies and Tie Down Screws safe in the studio or when travelling. |
|
|
|

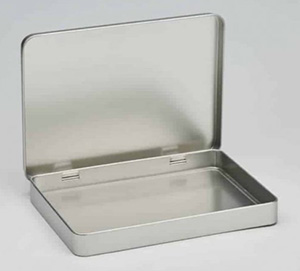

Tin with Hinged Lid - Plain Silver
220x160x25mm
Parts List Item 90
Price -
£3.50 each |
A plain siver tin with a hinged lid. 220x160x25mm. Ideal for keeping sculpting tools safe in the studio or when travelling.
|
|
|
|
|
