Human - CUZIN H2 Armature

CUZIN Range - 7 Human Armatures

INDY Range - 5 Human Armatures

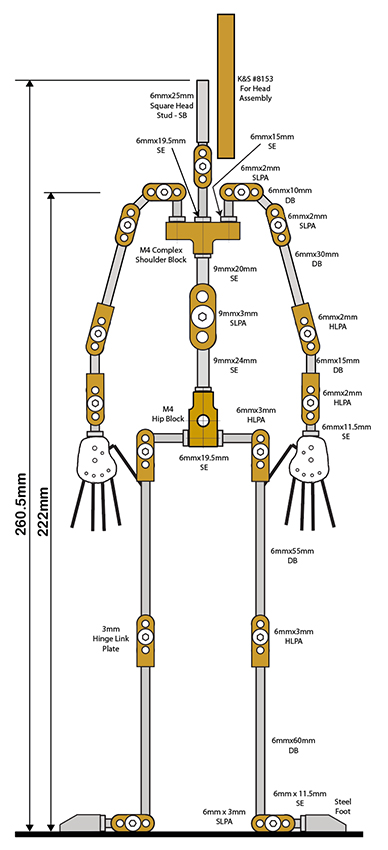

Key Features

Overall Height 260.5mm

Height to Shoulders 222.0mm

6mm Diameter Neck Link Plate Assembly
M4 Brass Complex Shoulder Block
9mm Diameter Backbone Link Plate Assembly
M4 Brass Hip Block with M4 Rigging Point
6mm Diameter Brass Hinge Link Plate Assemblies:
Elbows; Hips; Knees
6mm Diameter Brass Standard Link Plate Assemblies:
Neck; Shoulders; Ankles

Nickel Plated Steel Feet with Magnetic & M3 Tie Downs
Nickel Plated Steel Limbs with Integrated Balls
Square Head Stud compatible with K&S#8153 Square Tube
Stainless Steel Link Plate Screws
Fully Assembled using Loctite 270
1 x 75mm Rigging Stud
2 x 50mm Standard Tie Down Assemblies
2 x 12mm Stainless Steel Tie Down Screws
2mm & 2.5mm Allen Keys

Why not add a pair of Hands to your Armature for ONLY £15.00
CUZIN H2 Hand Set: 3D printed Hand, five twisted aluminium wire fingers, cut to length as required, 2mm rigging hole, wrist and link plate assembly with a double ball forearm.

CUZIN H2 Armature
Drawing Number MA-162
Parts List Item PL-202
£154.00

CUZIN H2 Armature with Hands
Drawing Number MA-162
Parts List Item PL-202/H
£174.00

3D printed Hands are available for all the CUZIN Armatures - More info

This Armature has been designed to be used with the M4 Large Rig Assembly
