Human - INDY H3 Armature

CUZIN Range - 7 Human Armatures

INDY Range - 5 Human Armatures

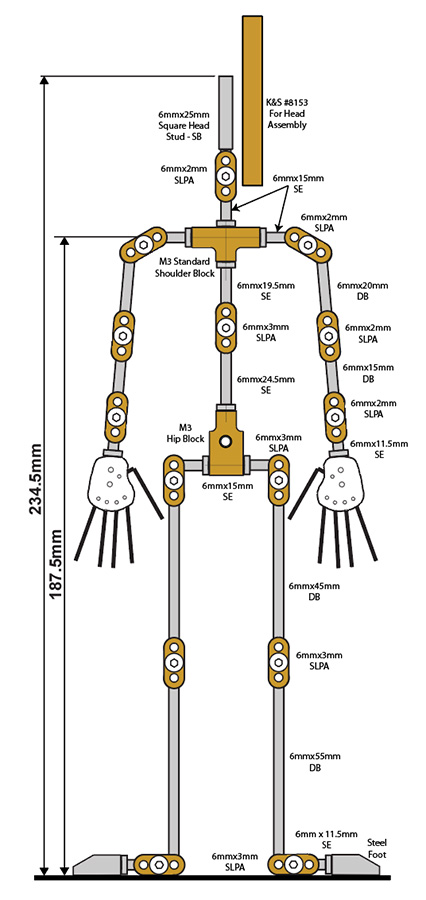

INDY H3 - Key Features

Overall Height 234.5mm

Height to Shoulders 187.5mm

6mm Diameter Single Neck Assembly
M3 Brass Standard Shoulder Block
6mm Diameter Backbone Link Plate Assembly
M3 Brass Hip Block with M34Rigging Point
6mm Diameter Brass Standard Link Plate Assemblies
Nickel Plated Steel Feet with Magnetic & M3 Tie Down
Nickel Plated Steel Limbs with Integrated Balls

Square Head Stud compatible with K&S#8153 Square Tube Stainless Steel Link Plate Screws
Fully Assembled using Loctite 270
1 x 75mm Rigging Stud
2 x 50mm Standard Tie Down Assemblies
2 x 12mm Stainless Steel Tie Down Screws
2mm Allen Key

Why not add a pair of Hands to your Armature for ONLY £15.00
INDY H3 Hand Set (Parts List Item 179): Standard 3D printed hand palm with five twisted aluminium wire fingers (which can be cut to length as required) glued in place with a 2mm rigging hole. Wrist assembly comprises 6mmx11.5mm Stud End Loctited in place, with a 6mmx2mm Standard Link Plate Assembly and a 6mmx15mm Double Ball End Forearm.

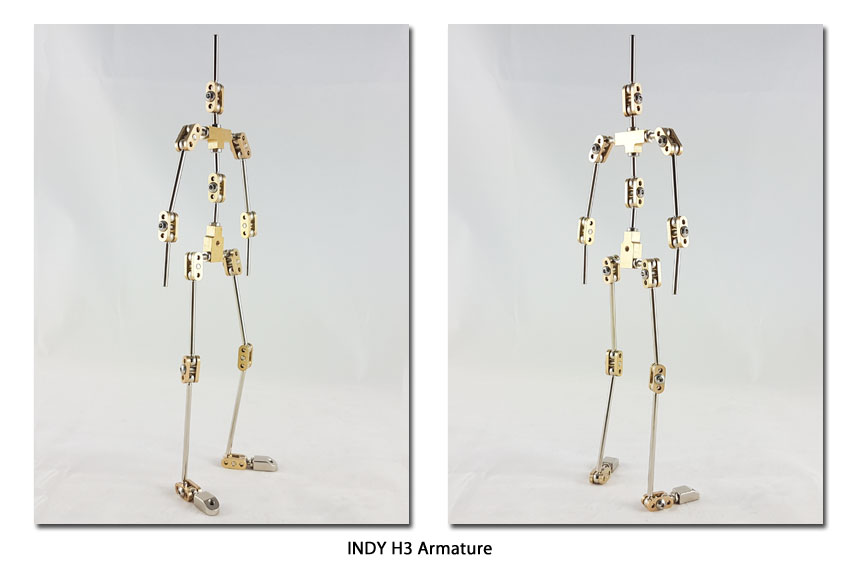

INDY H3 Armature
Drawing Number MA-071
Parts List Item PL-112
£133.00

INDY H3 Armature
Drawing Number MA-071
Parts List Item PL-112/H
£153.00

Hands available for the INDY H3 Armature - More info

This Armature has been designed to be used with the M4 Large Rig Assembly
